Fix VMware operating system not found Boot error

VMware applications are some of the most popular for creating and managing virtual machines. However, it's non uncommon to meet users experience a variety of problems when operating them. For example, when booting a newly created virtual machine, it fails to load simply then throws an error message that says the Operating system is not found.

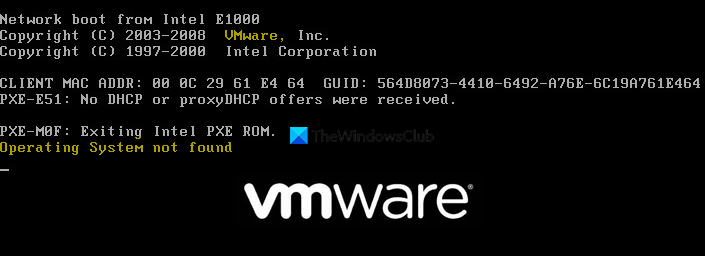

VMware operating system not found

VMware operating system not establish

The VMware boot fault is not exclusive to specific operating systems or installation media. You tin can get it when y'all try to install the operating system from a bad ISO file or when installing from physical storage without properly configuring VMware for it.

This error bulletin pops up when working with different Windows editions. In this department, we'll explore the various causes of the VMware kicking error and look into the best ways to fix it, adjacent.

Your virtual auto files are corrupted.
When creating the virtual auto, you didn't instruct VMware to read from a concrete storage media.
The ISO file from which you desire to create the virtual automobile is non a bootable 1.
The PXE boot filibuster menses is as well brief.

How to fix this VMware kicking error

Here, I'll show you the general methods used to fix the VMware kicking problem. If VMware is unable to find your operating arrangement, you should go over the causes of the result outlined in the above section.

From those, you lot tin can likely nail the exact crusade and pick the troubleshooting technique that applies to your case.

Ostend that the ISO is bootable.
Re-make the virtual motorcar with BIOS.
If installing from a concrete drive, allow VMware know.
Increase the PXE kicking filibuster menstruation.

If you're not sure how to carry out the above operations, and then continue reading this guide. Below are detailed explanations for these solutions.

one] Confirm that the ISO is bootable

You need to mount an ISO file on your virtual machine, and this ISO has to be a bootable OS to work. However, not every ISO files are bootable. Some of them are actually operating system updates.

Therefore, before going into more than complex troubleshooting techniques for the VMware boot mistake, starting time, confirm that the ISO is bootable. If the ISO is not bootable, so you have to get a bootable one. On the other manus, if you find that the ISO is bootable, you can and then brainstorm the repair.

Read: VMware Bridged network not working or detecting.

ii] Copy the virtual machine with unlike settings

If you're using a bootable ISO, and VMWare cannot notice your operating system, a second suspect it that the machine isn't configured with UEFI. In the grade of creating the VM, if you selected UEFI, you are probable to run into these boot errors. You demand to get back, create a new virtual motorcar, and set it to BIOS and non UEFI. Here'south what to practice:

Launch VMware and from the left-manus menu, become to Home. Select New Virtual Auto from the right section and hittingNext.

Choose the installation source so hit theNext button. If y'all apply VM Fusion or VMware workstation, unmark theEasy Install checkbox.

Select your preferred type of virtual machine based on the hardware of the host operating system. Now, selectCustom from the side by side page where yous are asked to choose betweenTypical andCustom.

Proper name the new virtual motorcar and select the directory to save it.

Modify the maximum disk size and select how you lot want to store the virtual deejay. Click theNext button.

Yous can configure the hardware settings whatsoever way yous seem fit or go out the default settings. Finally, click on the Stop button.

At this indicate, yous can run the new virtual machine to check that the boot mistake no longer shows up.

3] If installing from a concrete drive, permit VMware know

Many users who install operating systems from a bootable disk run into theOperating system not found boot error considering they didn't point out the drive from which to kicking. To prevent this problem, VMware should exist enlightened that you're installing it from that specific drive.

Launch the VMware application. Right-click on the problematic virtual machine and click onSettings.

Navigate to theHardwaretab and selectCD/DVD (SATA) from the list of devices.

Change theConnection toUse physical drive.

Click on the dropdown menu and choose the drive that contains the ISO file. Strike theOK button to save your settings.

Read: VMware Workstation cannot enter Unity way.

4] Increase the PXE kicking delay catamenia

The configuration of your virtual motorcar could crusade VMware to effort to PXE boot. This could be the root of the boot error you're experiencing because you may not be able to become into the Windows Installer screen fast enough.

VMware allows yous only a brief window to press whatever primal to boot into Windows Installer. Therefore, a great way to tackle this consequence is to increase the boot delay to 6 seconds or more than.

First, shut down all open up virtual machines and so close the VMware application.

Launch File Explorer and become to the post-obit directory:

C:\Users\[your username}\Documents\Virtual Machines

Remember to replace the [your username] function in the path in a higher place to your bodily user account name.

In this directory, double-click on the folder of the specific auto that'south giving issues and detect its.VMX file. Open up this file with a smart text editor (such equally Notepad ++).

This guide will aid you show file extensions in the folder if yous do not see them.

In the open document, go to the lesser finish of the text and so paste the lawmaking below:
